Shakespeare once said 'The wisdom in your head is like a spark in a flint, it will not come out unless you strike it.'

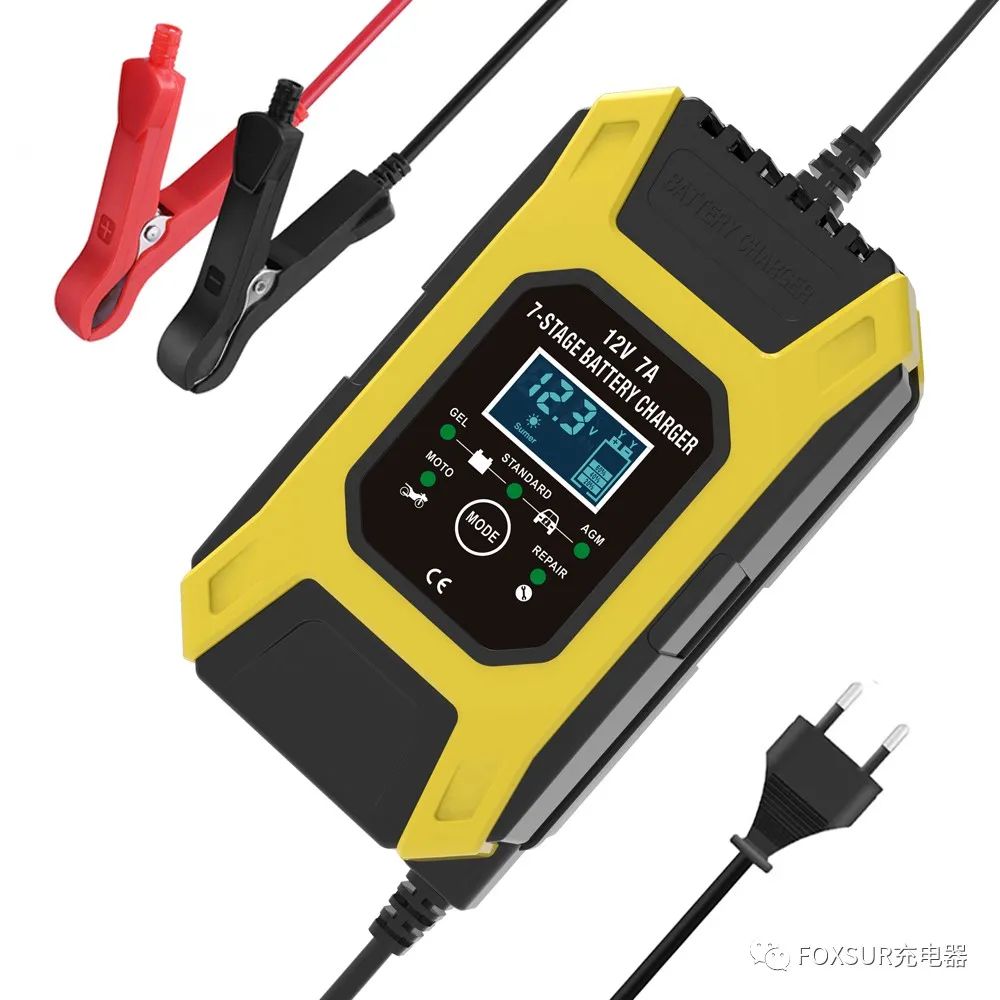

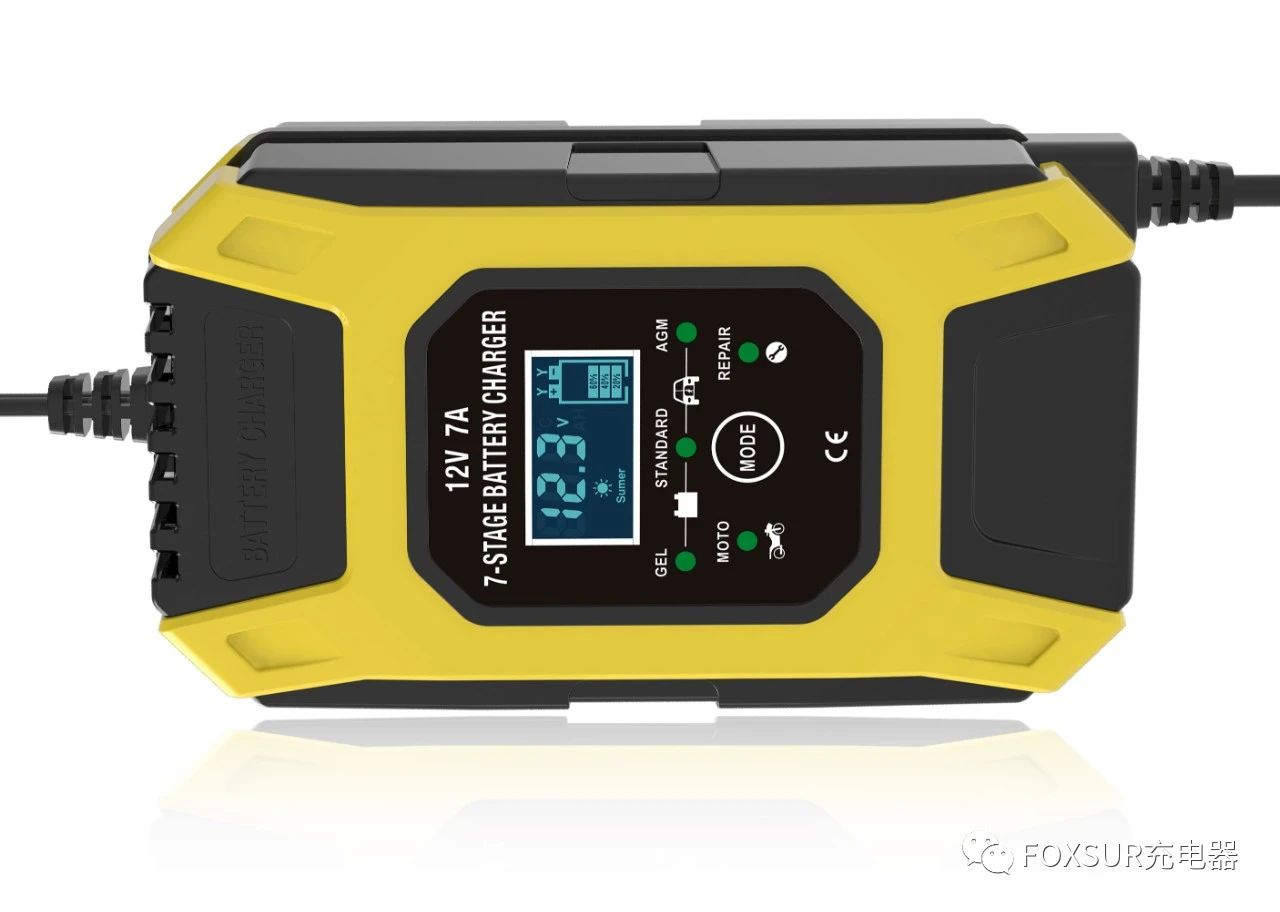

After a long meticulous market research, we are going to launch another heavyweight product, check the picture first :
Appearance: reproduce the classic industrial style design, with black as the main body and yellow shell decoration.

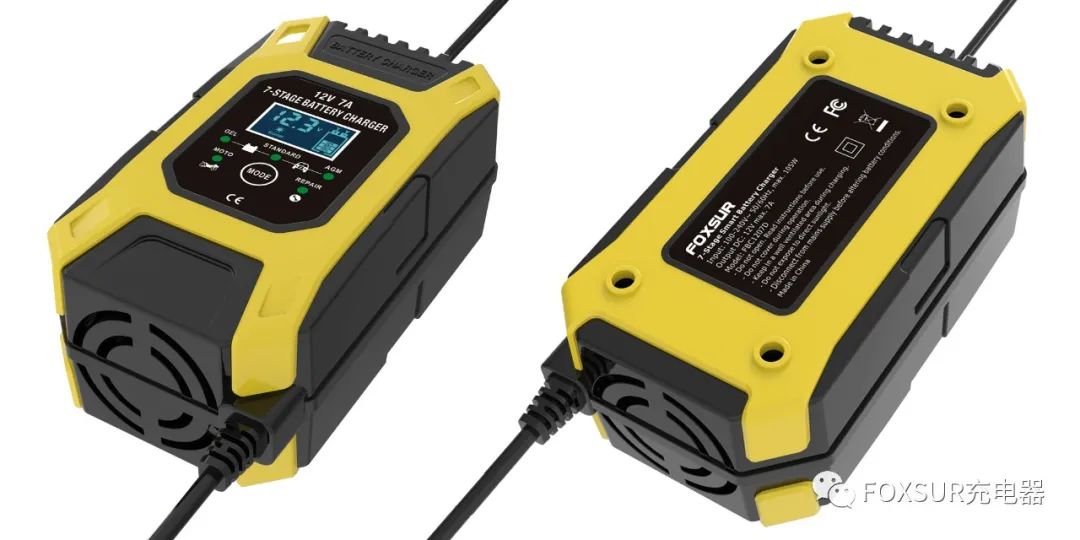

Charger front back
This charger adopts intelligent chip control, 7-stage intelligent charging, functions as follows:
Pulse charging: The pulse charging process can change the sulfation phenomenon of batteries that have not been charged for a long time, so that the batteries have been sulfated can be fully restored to normal charging status. The sulfurization phenomenon can cause the crystallization of sulfuric acid substances produced inside the battery, leading to blockage of energy conversion in the battery's electrode plates.
Soft-start charging: The charging process chargers energy slowly into the battery to protect the battery and extend battery life.
Constant current charging: the charger starts using high current for fast charging to make the battery capacity reach to 80% .
Constant Voltage Charging: At this point, the battery capacity is about 80% and the charger uses a low current to charge the battery to its rated capacity.
Battery Detection: The intelligent chip of the charger starts to detect the battery,If the battery function is normal, it will directly jump to step 7 for float charging. Otherwise, it will enter step 6 to repair the battery.
6.Battery Repair: Entering this mode indicates that the battery needs to be repaired, and the charger will automatically perform the repair for about 30 minutes.
7 .Float charging: At this point, the battery capacity is fully charged, and the user can remove the charger or continue charging it. After a period of time, the charger will automatically display a fully charged status.

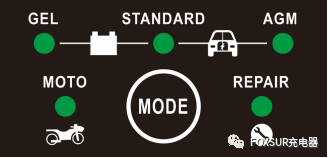

Charging mode optional.
GEL | GEL 电池模式 |
STANDARD | 标准电池模式 For SLA, WET, DEEP CYCLE, EFB, Calcium Batteries |
AGM | AGM电池模式 For charging AGM batteries |
MOTO | 摩托车电池模式 For charging motorcycle batteries |
REPAIR | 修复模式 (16 hours) An advanced battery recovery mode for repairing and storing, old, idle, damaged, stratified or sulfated. Not all batteries can be recovered, only can use on Motorcycle and Car batteries |
MODE | 模式选择开关 After charging for 30 seconds, the mode button will be locked. If you want to use it again, need to remove the alligator clip from the battery |
A lot of customers asking , why the battery is divided into several mode, with only one mode can not be charged?
A : Yes, The function of dividing into three mode charging, is to charge each type of battery more accurately, which is less likely to cause water loss and overheating of the battery, and extends the service life of the battery.
What is the difference between your 7-sstage charger and the 3-stage charger available on the market?
A:3-stage charging is a technology from over 20 years ago, but it is also a very classic charging process, to the point where 90% of chargers on the market currently use this charging process. 7-stage charging, on the basis of 3-stage charging, Added four stages of desulfurization, soft start, detection, and repair, and carried out more in-depth maintenance and pulse charging on the charged battery in a certain program, making the battery more fully charged and reducing the occurrence of sulfurization, thereby extending the service life of the battery.
