Products Description
Technical parameter
- Microprocessor Control (CPU).

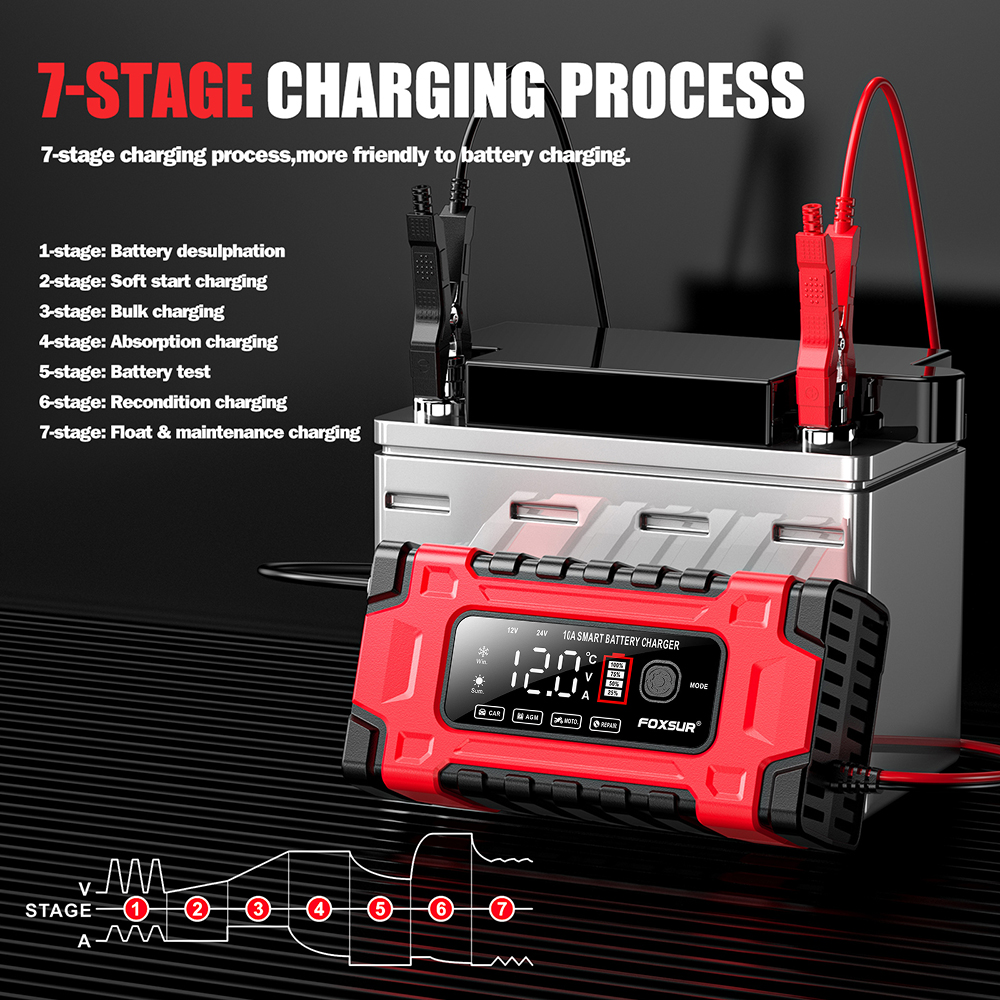

- 7-STAGE AUTOMATIC CHARGING:
- This is a fully automatic battery charger with 7 charge stages.
- Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
- 7-stage chargers are suitable for most battery types including Calcium, Gel AGM, Wet, lead Acid batteries. They may also help restore drained and sulphated batteries.
- Types of batteries: Most types of lead acid batteries including Calcium, Gel AGM, Wet, lead Acid, etc..
- Switchmode technology: Yes
- Polarity protection: Yes
- Output short protection: Yes
- Non battery link protection: Yes
- Over voltage protection: Yes
- Over temperature protection: Yes

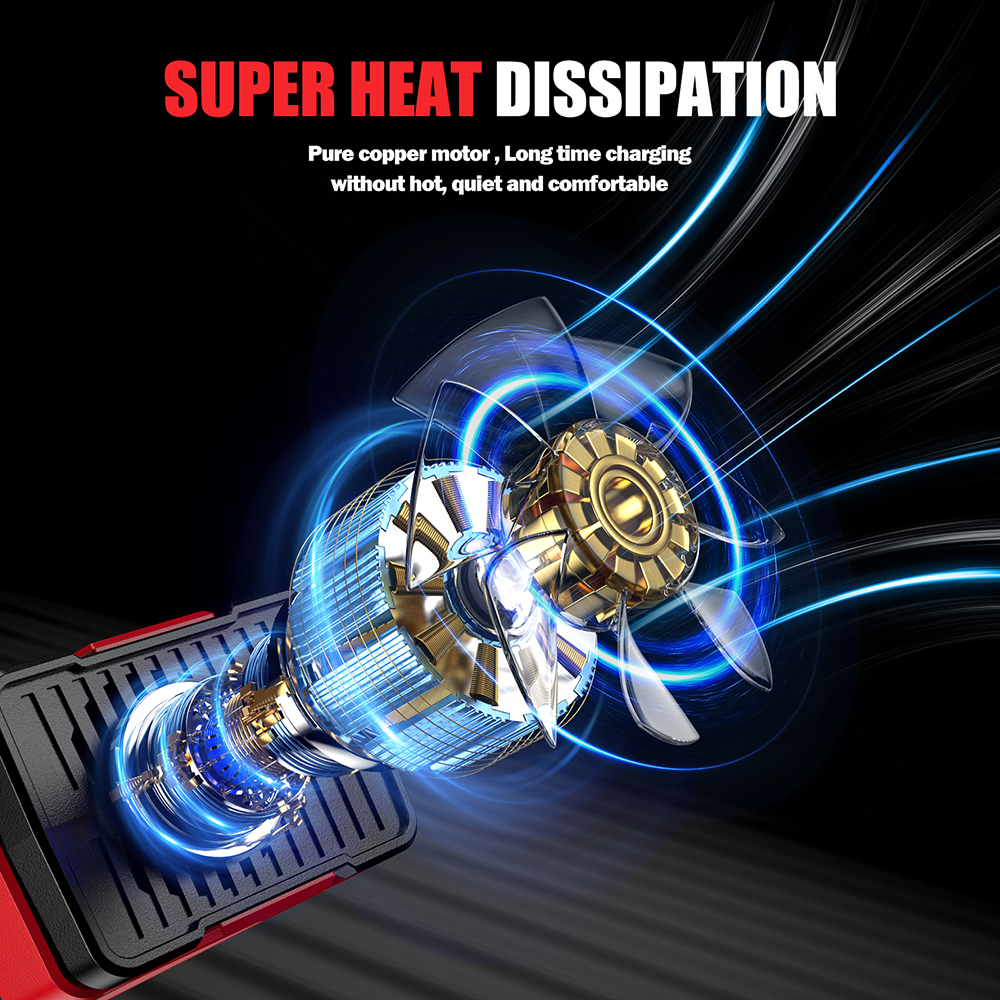

- Cooling: Fan
- Input voltage: 100-240V AC, 50-60Hz
- Rated output: 12V 10A , 24V 5A
- Minimum start voltage: 8.0V
- Battery range: 6-180Ah
- Thermal protect: 65'C+/-5'C
- Efficiency: App. 85%.
- Compliant standards: CE, IEC60335, EN61000, EN55014

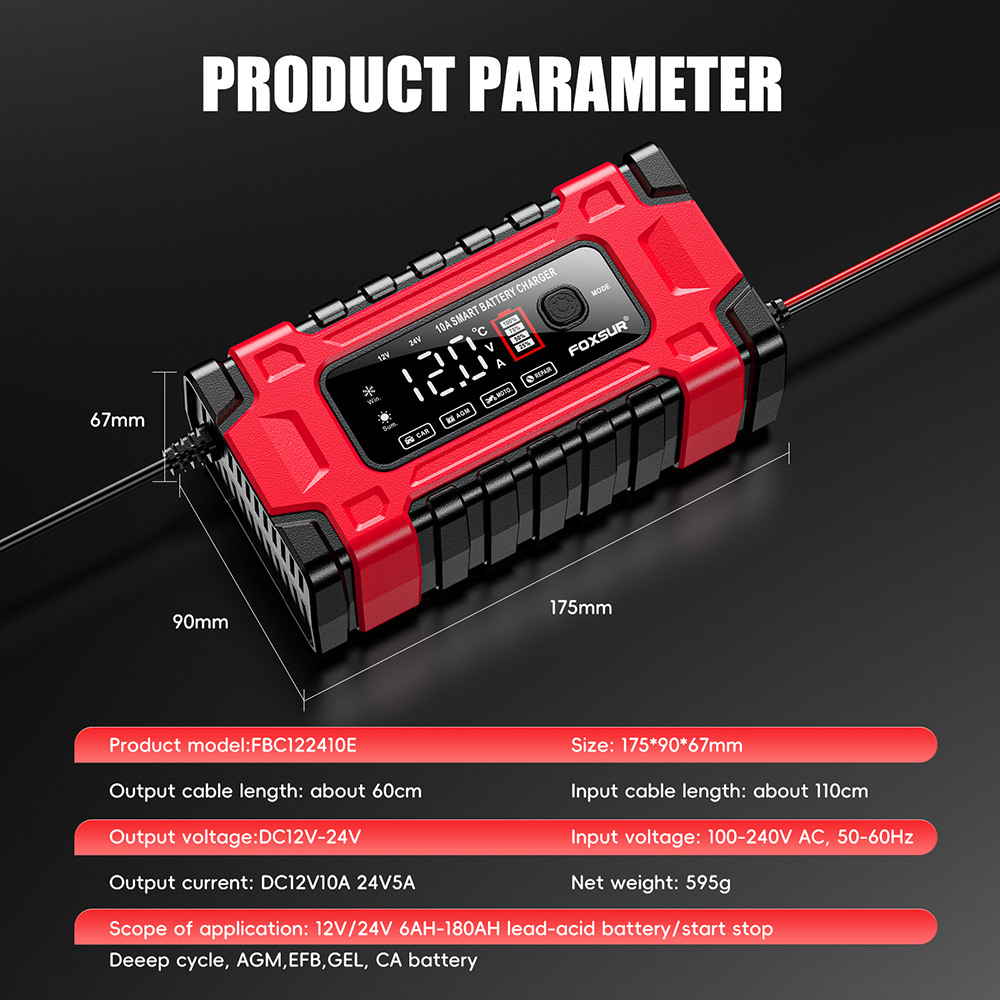

- Dimension (L×W×H): 175×90×67mm
- Weight: 585g
