Microprocessor Control (CPU).

8-STAGE AUTOMATIC CHARGING:

This is a fully automatic battery charger with 8 charge stages.

 Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.

8-stage chargers are suitable for most battery types including Calcium, EFB,Gel AGM, Wet,LiFePO4, lead Acid batteries. They may also help restore drained and sulphated batteries.

 Types of batteries: Most types of lead acid batteries including Calcium, Gel AGM, EFB,Wet, LiFePO4,lead Acid, etc..

 Switchmode technology: Yes

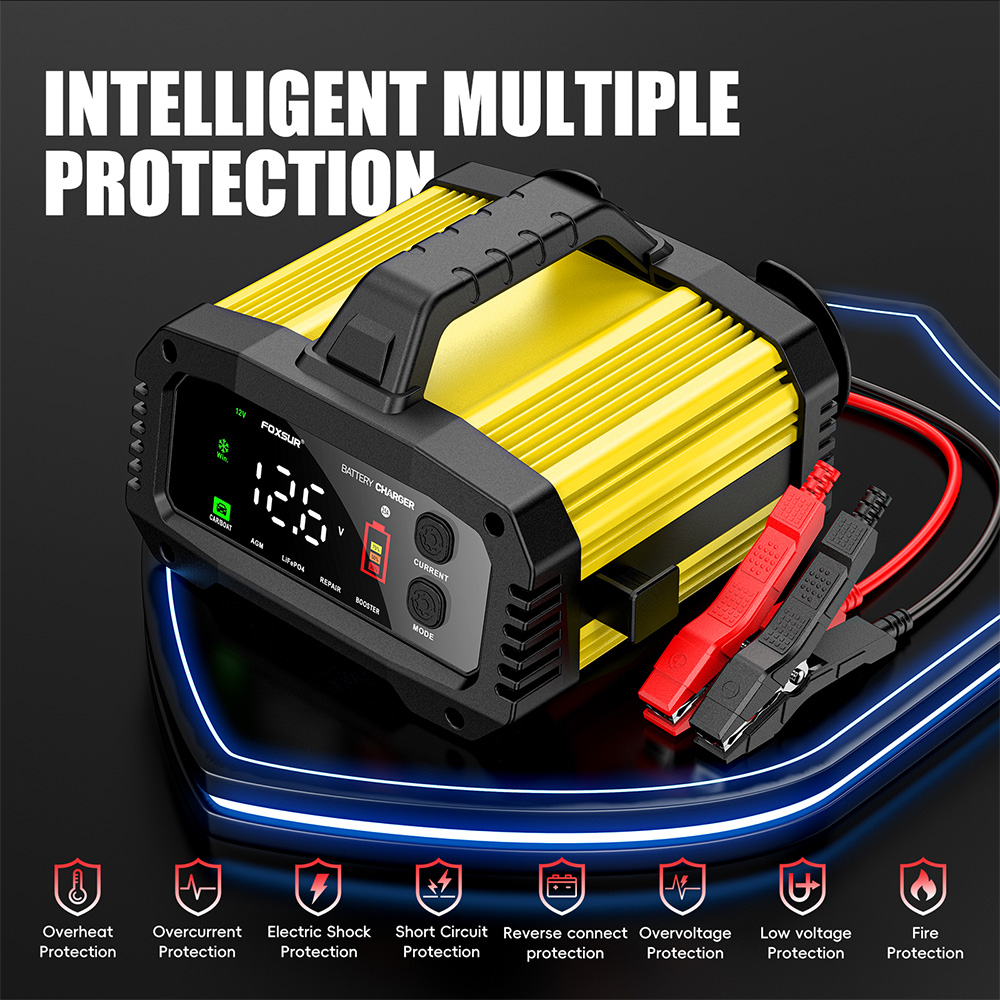

 Polarity protection: Yes

 Output short protection: Yes

 Non battery link protection: Yes

 Over voltage protection: Yes

 Over temperature protection: Yes

 Cooling: Fan

 Input voltage: 100-240V AC, 50-60Hz

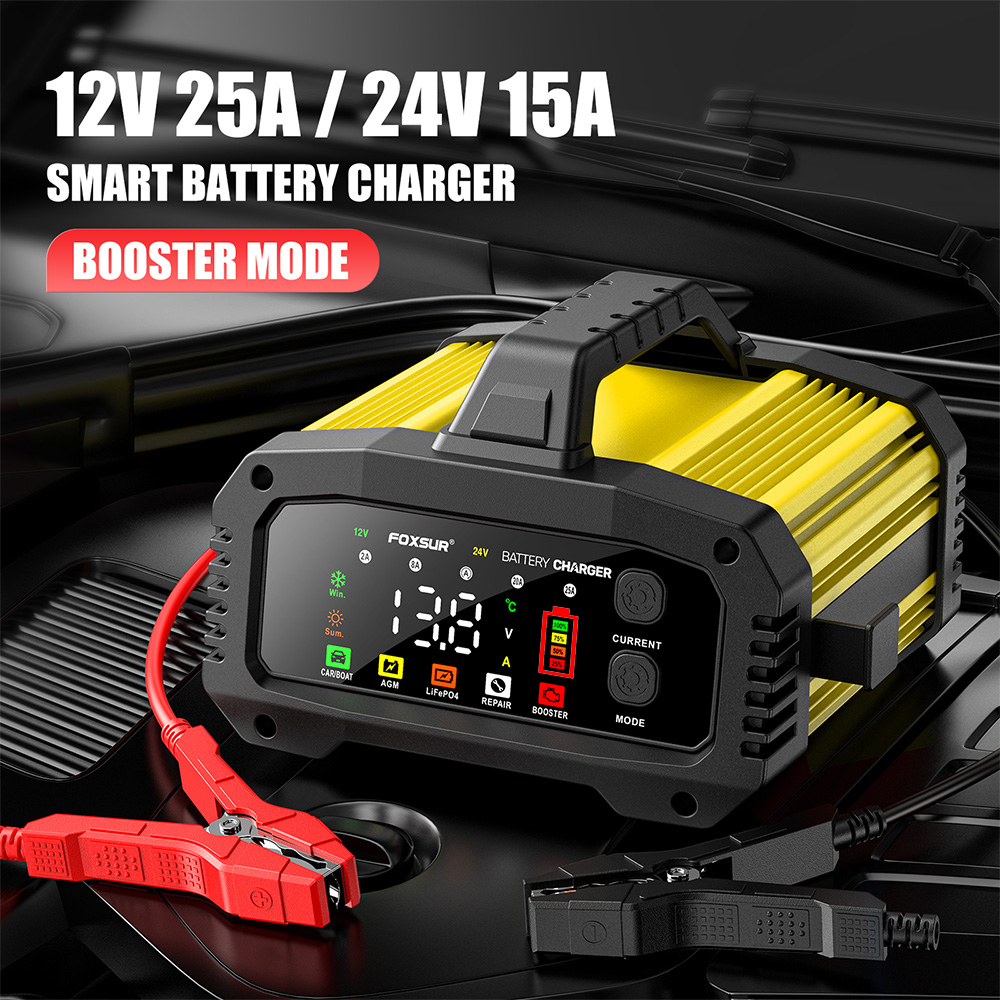

 Rated output: 12V 25A , 24V 15A

 Minimum start voltage: 5.0V

 Battery range: 6-400Ah

 Thermal protect: 65'C+/-5'C

 Efficiency: App. 85%.

 Compliant standards: CE, UKCA, FCC

 Dimension (L×W×H): 192×216×125mm

 Net Weight: 1500g
